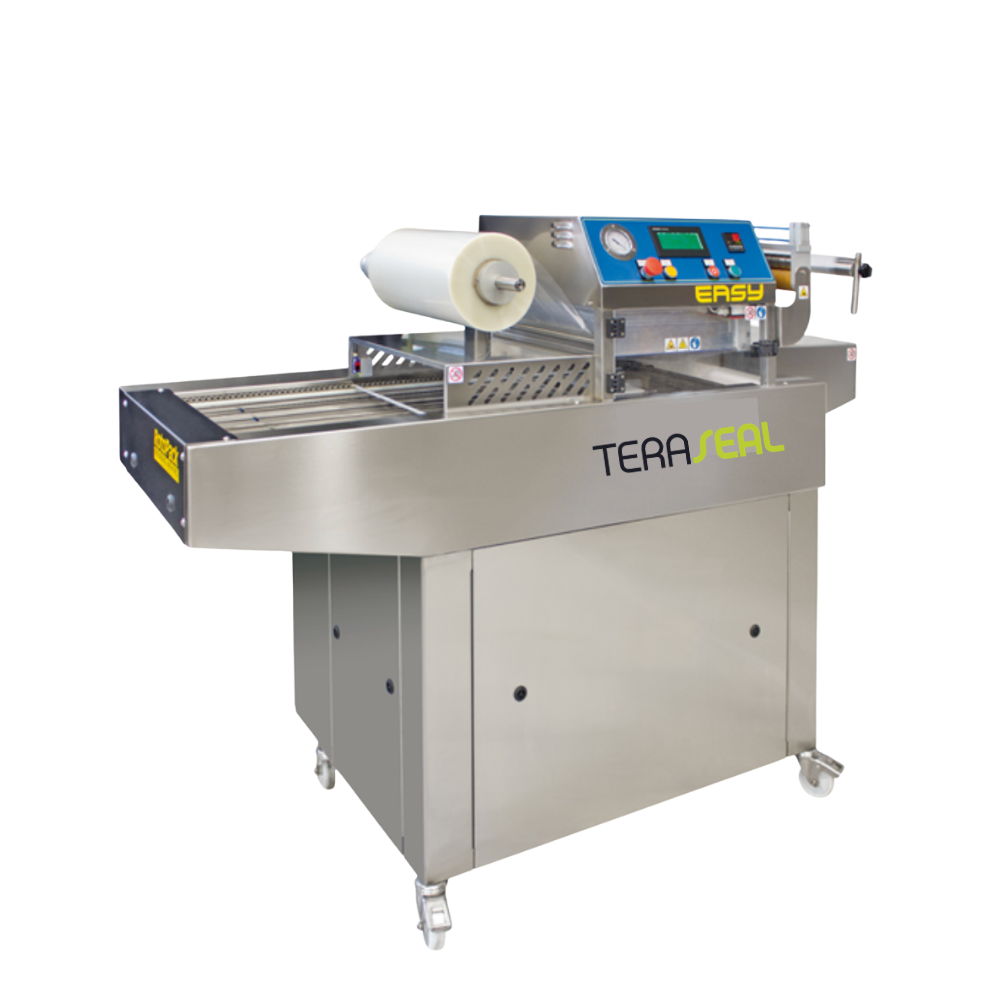

TeraSeal Futura Easy Automatic Tray Sealing Machine

  • Automatic vacuum /MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc. ;
  • Tools easy to change and interchangeable with mod. SVR BASIC, SVR, SVR TURN and RAPIDA +;
  • Compact size;
  • Teflon coated sealing plate;
  • Digital temperature controller with PT 100 probe;
  • Pressure sensor for vacuum and gas;
  • Moduls made on tray samples for any shape
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening
  • Extra vacuum and extra gas functions
  • Touch screen with 10 storable programs;
  • Structure in stainless steel and aluminium;

Optional:

  • Version “only sealing”;
  • Version “skin packaging”;
  • Special vacuum pump for gas mixtures with high oxygen%;
  • Photocell for printed film

WATCH THE TUTORIAL HERE

Contact us for more details and pricing.

POWER

400 V – 50/60 HZ 3P+N+PE

POWER CONSUMPTION

4,5 KW

AIR SUPPLY

20 NI/ciclo – 6 bar

WEIGHT

Kg. 300

MAX. CONTAINER DIMENSION

360 x 270 x h.100 mm

MACHINE DIMENSIONS

Cm. 160 x 080 x h.131

VACUUM PUMP

60 M3

MAX. FILM WIDTH

430 mm.

PRODUCTIVITY VAC-GAS/ ONLY SEALING

5 / 12 cicli/min
